Redis

Monitor your Redis instances by collecting metrics using the OpenTelemetry Collector and sending them to Parseable.

Overview

The OpenTelemetry Collector's Redis receiver collects metrics from Redis instances using the INFO command including:

Server Statistics - Uptime, connected clients, memory usage
Memory Metrics - Used memory, peak memory, fragmentation
Persistence Metrics - RDB and AOF status
Replication Metrics - Master/replica status and lag
Command Statistics - Commands processed, keyspace hits/misses

Prerequisites

Redis 4.0+
OpenTelemetry Collector with redis receiver
Parseable instance running and accessible

Redis Authentication (Optional)

If your Redis instance requires authentication:

# Redis 6.0+ with ACL
redis-cli ACL SETUSER otel on >your-password +info +client +slowlog +latency allkeys

# Redis < 6.0 with requirepass
# Set password in redis.conf: requirepass your-password

OpenTelemetry Collector Configuration

Basic Configuration

Create an otel-collector-config.yaml file:

receivers:
  redis:
    endpoint: "localhost:6379"
    collection_interval: 10s
    password: ${env:REDIS_PASSWORD}

exporters:
  otlphttp/parseable:
    endpoint: "http://parseable:8000"
    headers:
      Authorization: "Basic YWRtaW46YWRtaW4="
      X-P-Stream: "redis-metrics"
      X-P-Log-Source: "otel-metrics"
    tls:
      insecure: true

service:
  pipelines:
    metrics:
      receivers: [redis]
      exporters: [otlphttp/parseable]

TLS Configuration

For Redis instances with TLS enabled:

receivers:
  redis:
    endpoint: "localhost:6379"
    collection_interval: 10s
    username: otel
    password: ${env:REDIS_PASSWORD}
    tls:
      insecure: false
      ca_file: /path/to/ca.crt
      cert_file: /path/to/client.crt
      key_file: /path/to/client.key

exporters:
  otlphttp/parseable:
    endpoint: "http://parseable:8000"
    headers:
      Authorization: "Basic YWRtaW46YWRtaW4="
      X-P-Stream: "redis-metrics"
      X-P-Log-Source: "otel-metrics"
    tls:
      insecure: true

service:
  pipelines:
    metrics:
      receivers: [redis]
      exporters: [otlphttp/parseable]

Unix Socket Configuration

For Redis instances using Unix sockets:

receivers:
  redis:
    endpoint: "/var/run/redis/redis.sock"
    transport: unix
    collection_interval: 10s
    password: ${env:REDIS_PASSWORD}

exporters:
  otlphttp/parseable:
    endpoint: "http://parseable:8000"
    headers:
      Authorization: "Basic YWRtaW46YWRtaW4="
      X-P-Stream: "redis-metrics"
      X-P-Log-Source: "otel-metrics"
    tls:
      insecure: true

service:
  pipelines:
    metrics:
      receivers: [redis]
      exporters: [otlphttp/parseable]

Configuration Options

Parameter	Default	Description
`endpoint`	-	Redis server endpoint (required)
`transport`	`tcp`	Transport protocol (`tcp` or `unix`)
`username`	-	Username for Redis 6.0+ ACL
`password`	-	Redis password
`collection_interval`	`10s`	Metrics collection interval
`tls.insecure`	`true`	Disable TLS
`tls.ca_file`	-	CA certificate path
`tls.cert_file`	-	Client certificate path
`tls.key_file`	-	Client key path

Collected Metrics

The Redis receiver collects the following metrics:

Metric	Description
`redis.clients.connected`	Number of connected clients
`redis.clients.blocked`	Number of blocked clients
`redis.clients.max_input_buffer`	Biggest input buffer
`redis.clients.max_output_buffer`	Biggest output buffer
`redis.commands`	Total commands processed
`redis.commands.processed`	Commands processed per second
`redis.connections.received`	Total connections received
`redis.connections.rejected`	Rejected connections
`redis.cpu.time`	CPU time consumed
`redis.db.avg_ttl`	Average TTL of keys
`redis.db.expires`	Keys with expiration
`redis.db.keys`	Total keys in database
`redis.keys.evicted`	Evicted keys
`redis.keys.expired`	Expired keys
`redis.keyspace.hits`	Keyspace hits
`redis.keyspace.misses`	Keyspace misses
`redis.memory.fragmentation_ratio`	Memory fragmentation ratio
`redis.memory.lua`	Lua memory usage
`redis.memory.peak`	Peak memory usage
`redis.memory.rss`	Resident set size
`redis.memory.used`	Used memory
`redis.net.input`	Network input bytes
`redis.net.output`	Network output bytes
`redis.rdb.changes_since_last_save`	Changes since last RDB save
`redis.replication.backlog_first_byte_offset`	Replication backlog offset
`redis.replication.offset`	Replication offset
`redis.slaves.connected`	Connected replicas
`redis.uptime`	Server uptime in seconds

Running the Collector

Docker

docker run -d \
  --name otel-collector \
  -v $(pwd)/otel-collector-config.yaml:/etc/otelcol/config.yaml \
  -e REDIS_PASSWORD=your-password \
  otel/opentelemetry-collector-contrib:latest

Docker Compose

version: '3.8'
services:
  otel-collector:
    image: otel/opentelemetry-collector-contrib:latest
    volumes:
      - ./otel-collector-config.yaml:/etc/otelcol/config.yaml
    environment:
      - REDIS_PASSWORD=${REDIS_PASSWORD}
    depends_on:
      - redis
      - parseable

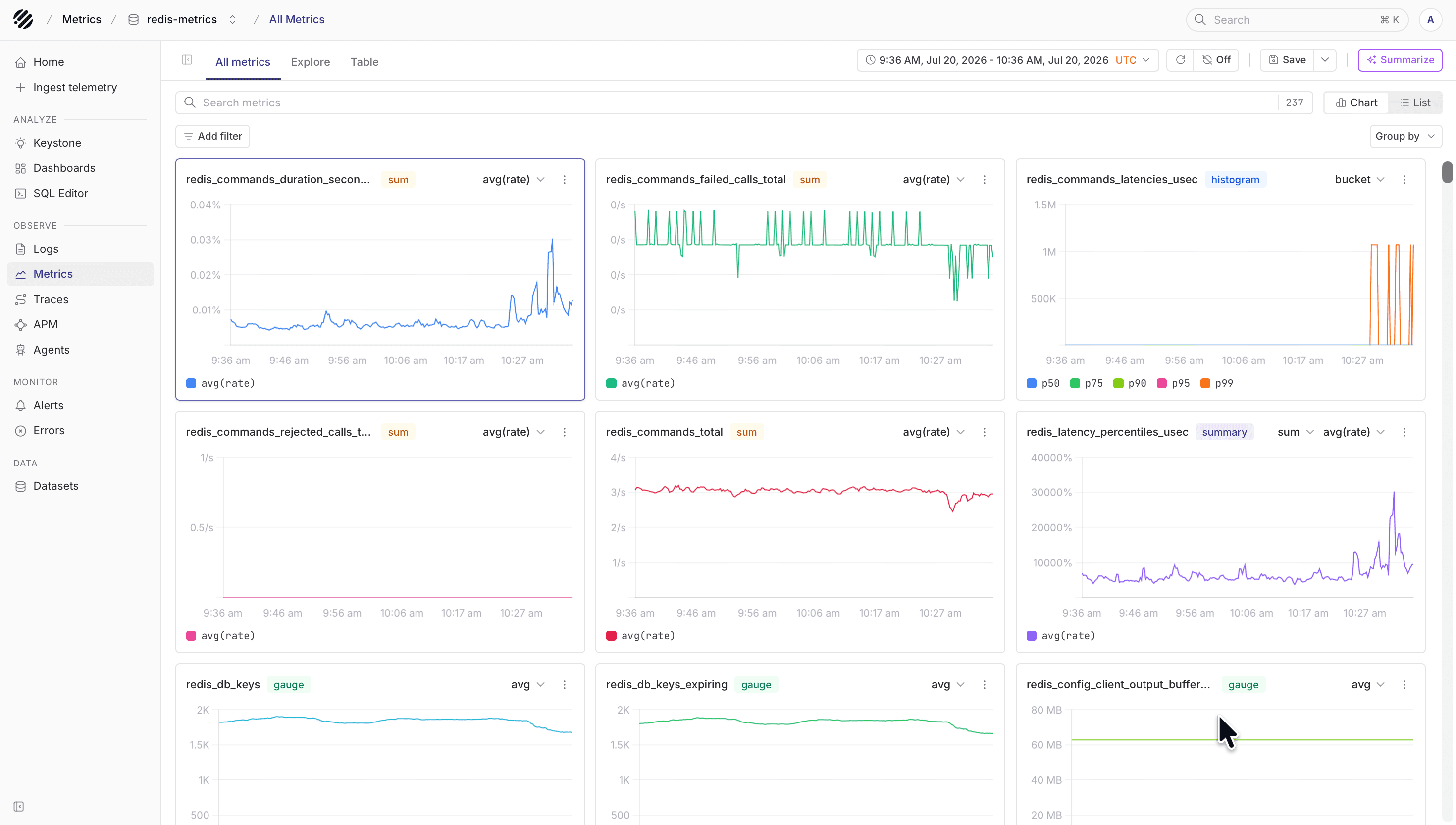

Querying Redis Metrics in Parseable

Once data is flowing, query your Redis metrics:

-- Get memory usage over time
SELECT p_timestamp, memory_used, memory_peak
FROM "redis-metrics"
ORDER BY p_timestamp DESC
LIMIT 100

-- Calculate cache hit ratio
SELECT
  p_timestamp,
  keyspace_hits,
  keyspace_misses,
  (keyspace_hits::float / NULLIF(keyspace_hits + keyspace_misses, 0)) * 100 as hit_ratio
FROM "redis-metrics"
WHERE p_timestamp > NOW() - INTERVAL '1 hour'
ORDER BY p_timestamp DESC

Troubleshooting

Connection Issues

If the collector can't connect to Redis:

Verify Redis is accepting connections on the configured port
Check the password is correct
Verify protected-mode settings in Redis
Check firewall rules allow the connection

Missing Metrics

If some metrics are not appearing:

Ensure the Redis user has permission to run INFO command
Check if specific features (like replication) are enabled
Verify the Redis version supports the metrics

Next Steps

Set up alerts for cache performance thresholds
Create dashboards for Redis monitoring
Explore SQL queries for custom analysis
